DT-525 PCBA

Software Specification

There are two boot method:
  • Boot from SD card: When power on, system will load Linux image and application from SD card and perform them from RAM.
  • Boot from eMMC: When power on, system will load Linux image and application from eMMC and perform them from RAM.
    • DT-525

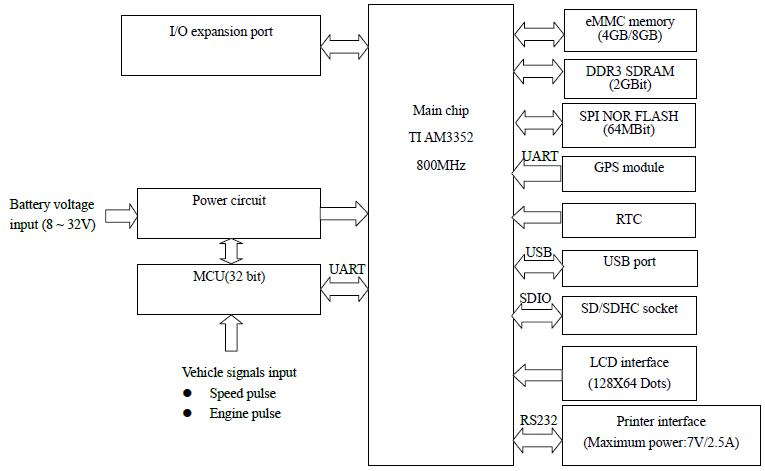

    Block diagram

    Hardware Specification

  • Input voltage: 8 ~ 32V
  • Power consumption(Normal mode): 150mA@12V
  • Operating temperature: -20~70℃
  • Storage Temperature : -30~80℃
  • Dimension: 171(L) x 123(W) mm

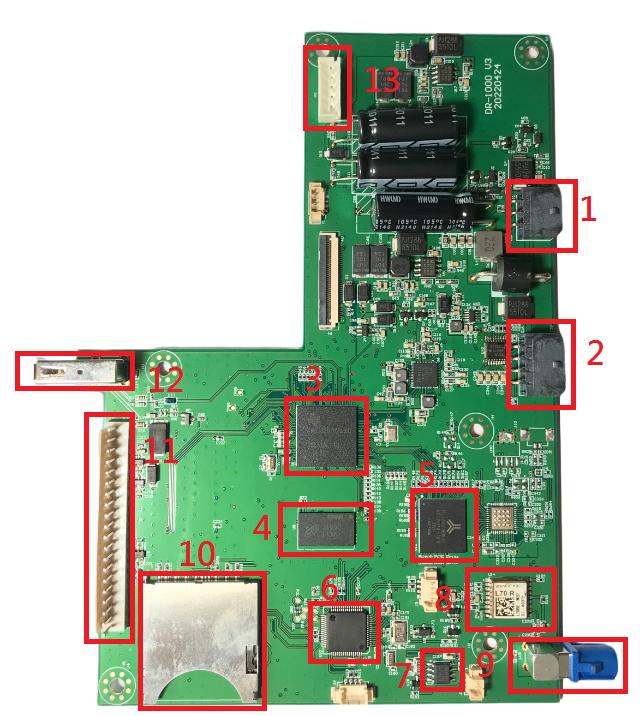

    • ItemDescription
    1Battery input connector
    2I/O expansion port
    3CPU(TI AM335X)
    4DDR3(2 Gb)
    5eMMC(4GB or 8GB)
    6MCU(STM32F103)
    7RTC
    8GPS module
    9GPS antenna(Fakra type)
    10SD socket
    11LCD interface
    12USB port
    13Printer interface

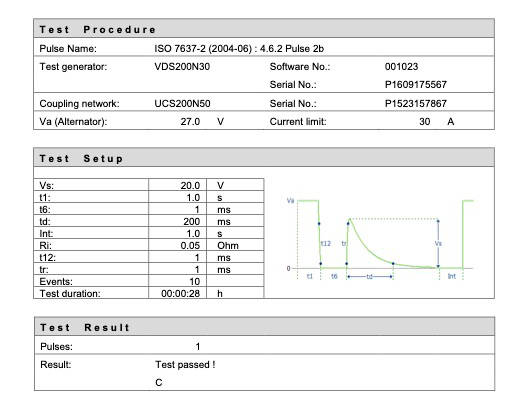

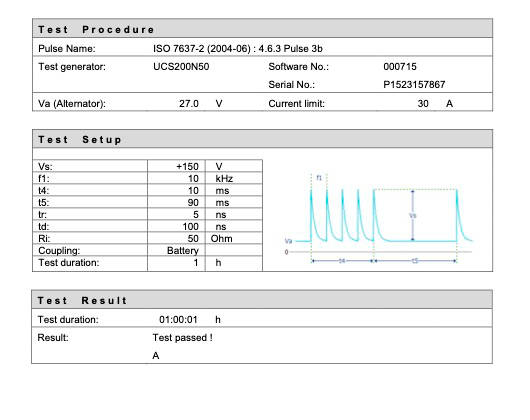

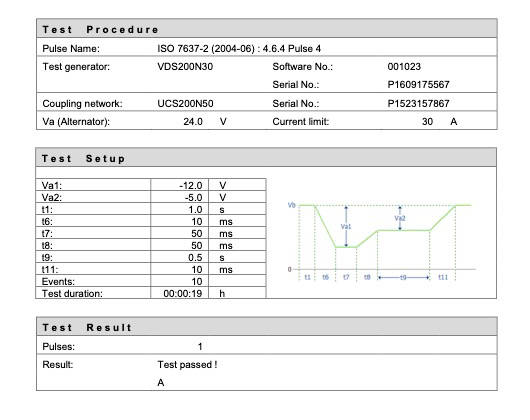

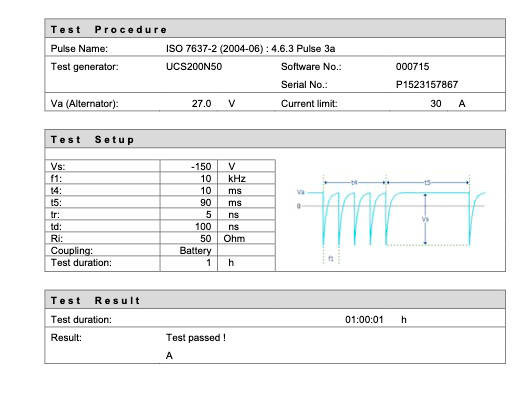

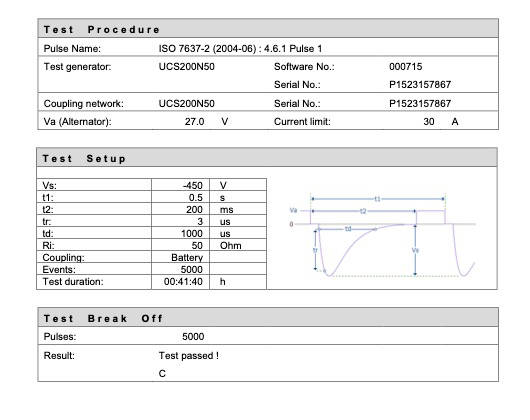

    Electromagnetic Compatibility Testing (EMC) PASS
